LDT-FC02-B Scrap Fabric Crushing and Opening Machine with Pillow Stuffer
Capacity 100–250 kg/h
Belt Width 790 mm
Dimensions 3800 × 1230 × 1020 mm
Power Supply Three-phase, 380 V
Contact Us Send Inquiry

LDT-FC02-B Scrap Fabric Crushing and Opening Machine

The LDT-FC02-B crushes and opens scrap fabric. The shown configuration combines the opening machine with a pillow stuffing unit. The photos show quilted fabric offcuts and the resulting opened material.

Key Features

Material processing: Conveyor-fed crushing and opening for scrap fabric.
Rated capacity: 100-250 kg/h, depending on the input material and operating conditions.
Filling stage: A 2.2 kW pillow stuffer with specified tube diameters of 75, 89 and 114 mm.

Technical Specifications

Model LDT-FC02-B
Motor Power 7.5 kW + 0.75 kW
Power Supply Three-phase, 380 V
Belt Width 790 mm
Capacity 100–250 kg/h
Pillow Stuffer Power 2.2 kW
Stuffer Tube Diameter 75 / 89 / 114 mm
Dimensions 3800 × 1230 × 1020 mm
Estimated Package Dimensions 390 × 133 × 112 cm

Please provide your scrap material photos or samples for a suitability review. Rated capacity is not a guarantee for every fabric or filling mixture.

Product Pictures

1. Machine Overview

LDT-FC02-B fabric crushing and opening machine

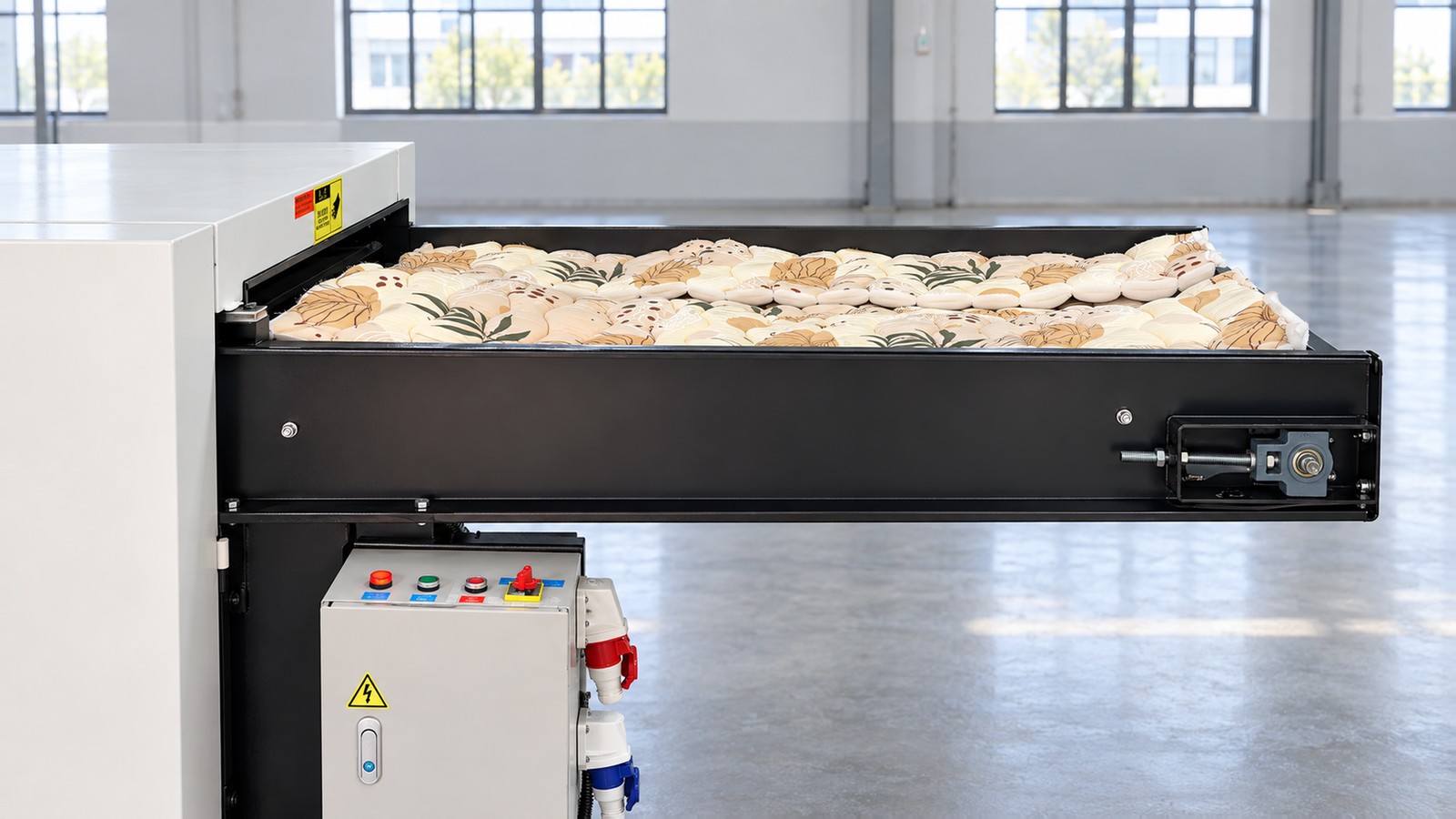

2. Feeding Conveyor

Feeding conveyor

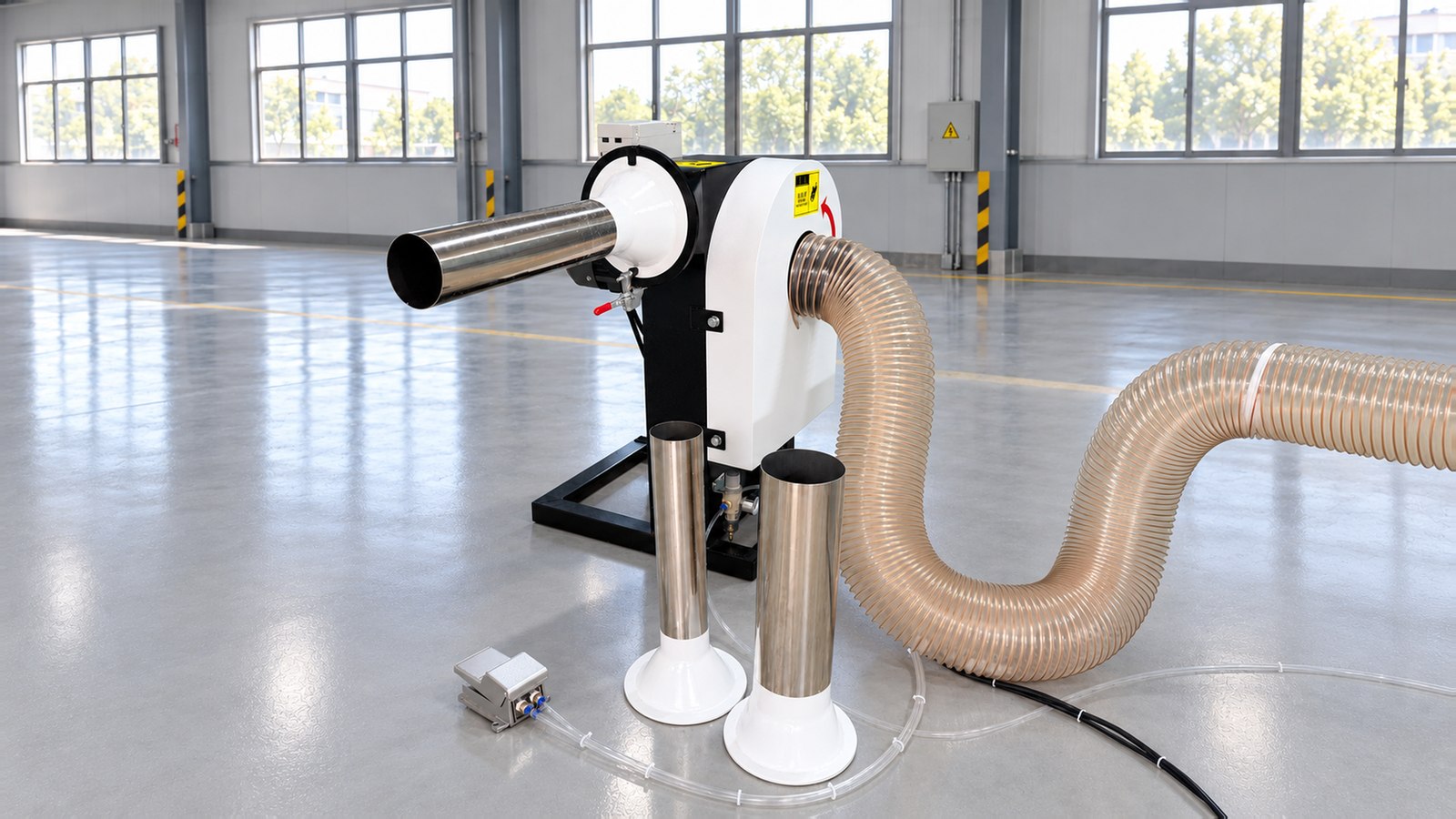

3. Pillow Stuffer and Filling Tubes

Pillow stuffing unit

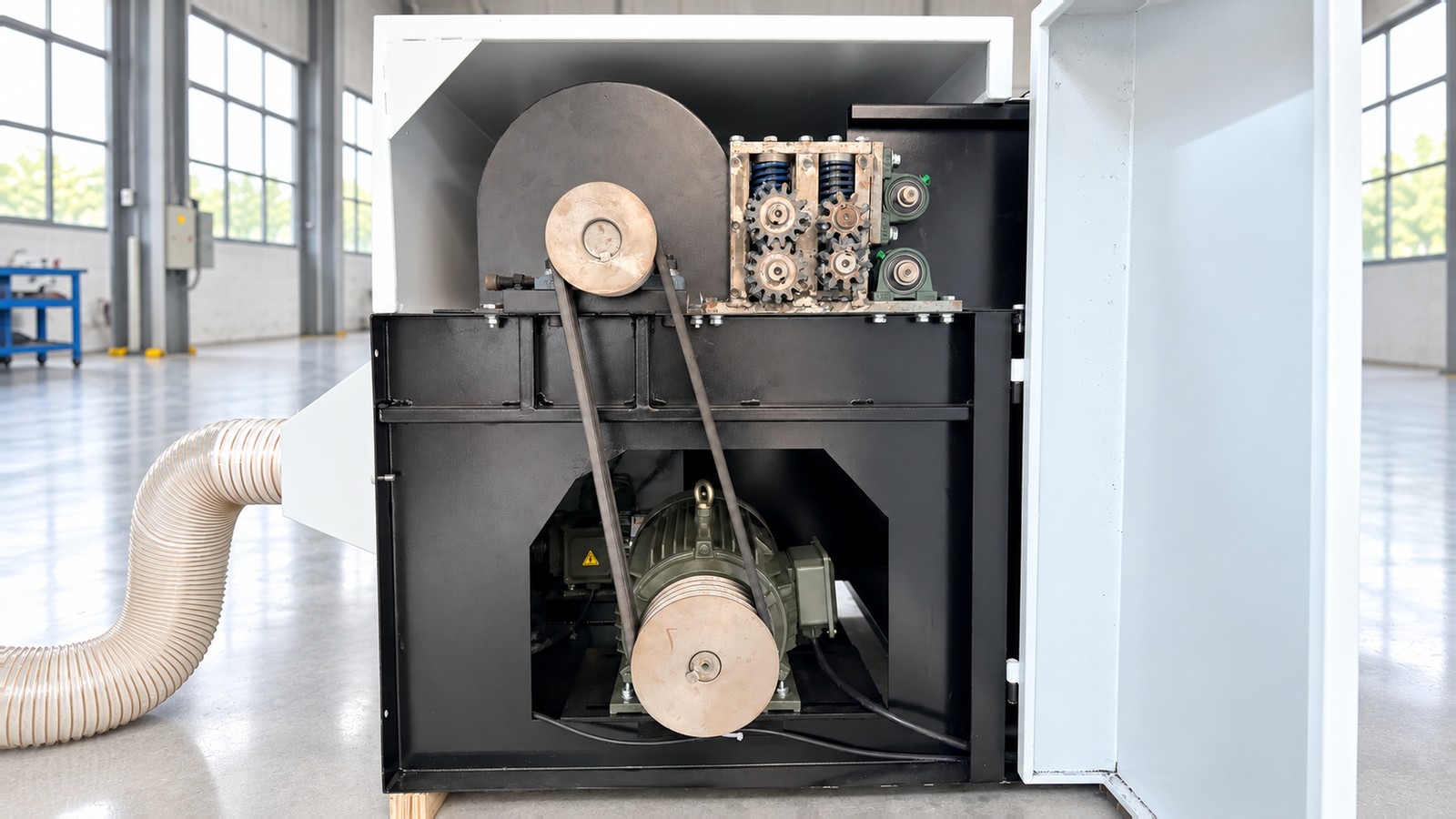

4. Drive Mechanism

Drive mechanism

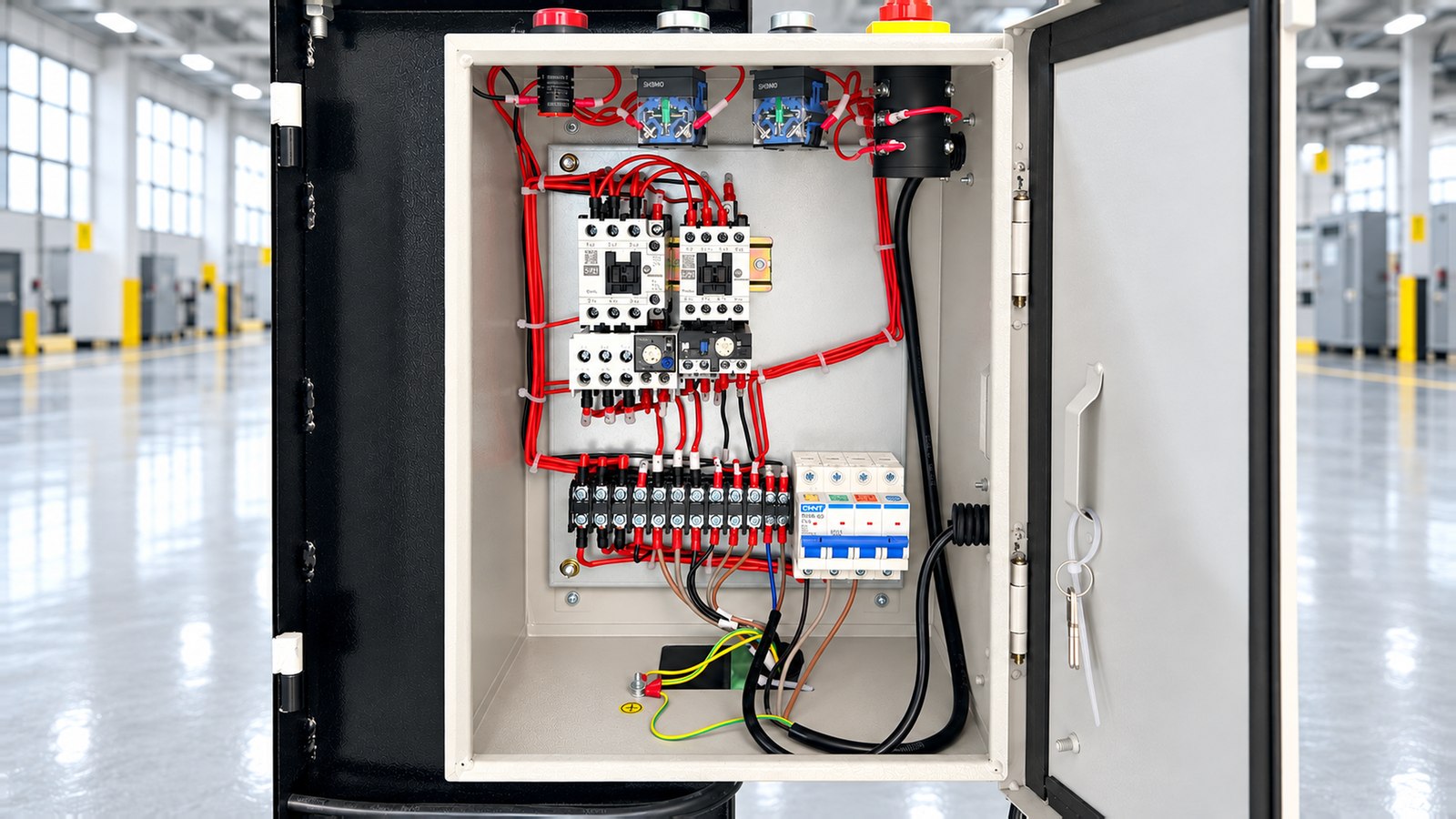

5. Electrical Cabinet

Electrical cabinet

6. Scrap Fabric and Opened Material

Scrap fabric and opened material

Packing & Delivery

Contact us with your destination for packing, freight and delivery details. Final package dimensions and gross weight should be confirmed for the ordered configuration before shipment.

Before You Request a Quotation

Please send photos of your scrap fabric, its layer composition, target output, finished pillow or cushion size, local power supply and destination country. These details help us review suitability and the required configuration.

Model LDT-FC02-B
Motor Power 7.5 kW + 0.75 kW
Power Supply Three-phase, 380 V
Belt Width 790 mm
Capacity 100–250 kg/h
Pillow Stuffer Power 2.2 kW
Stuffer Tube Diameter 75 / 89 / 114 mm
Dimensions 3800 × 1230 × 1020 mm
Estimated Package Dimensions 390 × 133 × 112 cm
