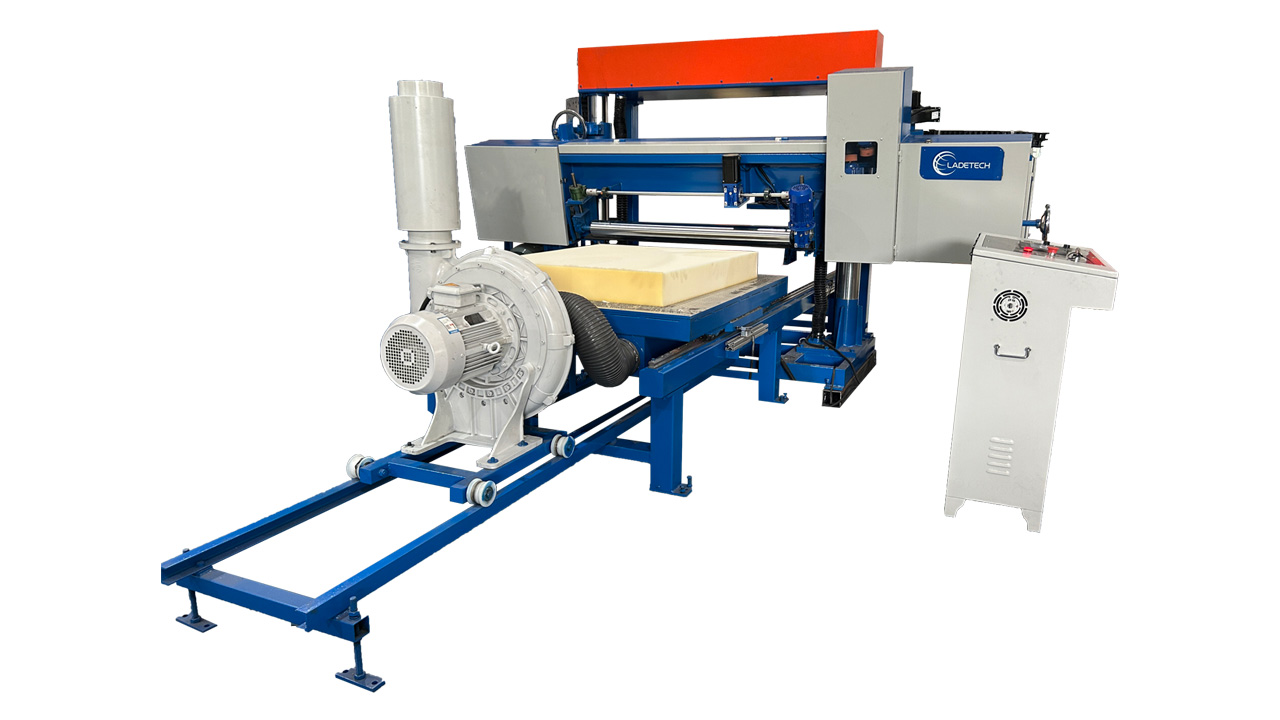

LDT-GJD01 Horizontal High Precision Foam Cutting Machine

Working Table Size
(W x L)

1200 x 2400 mm

Cutting Height

300 mm

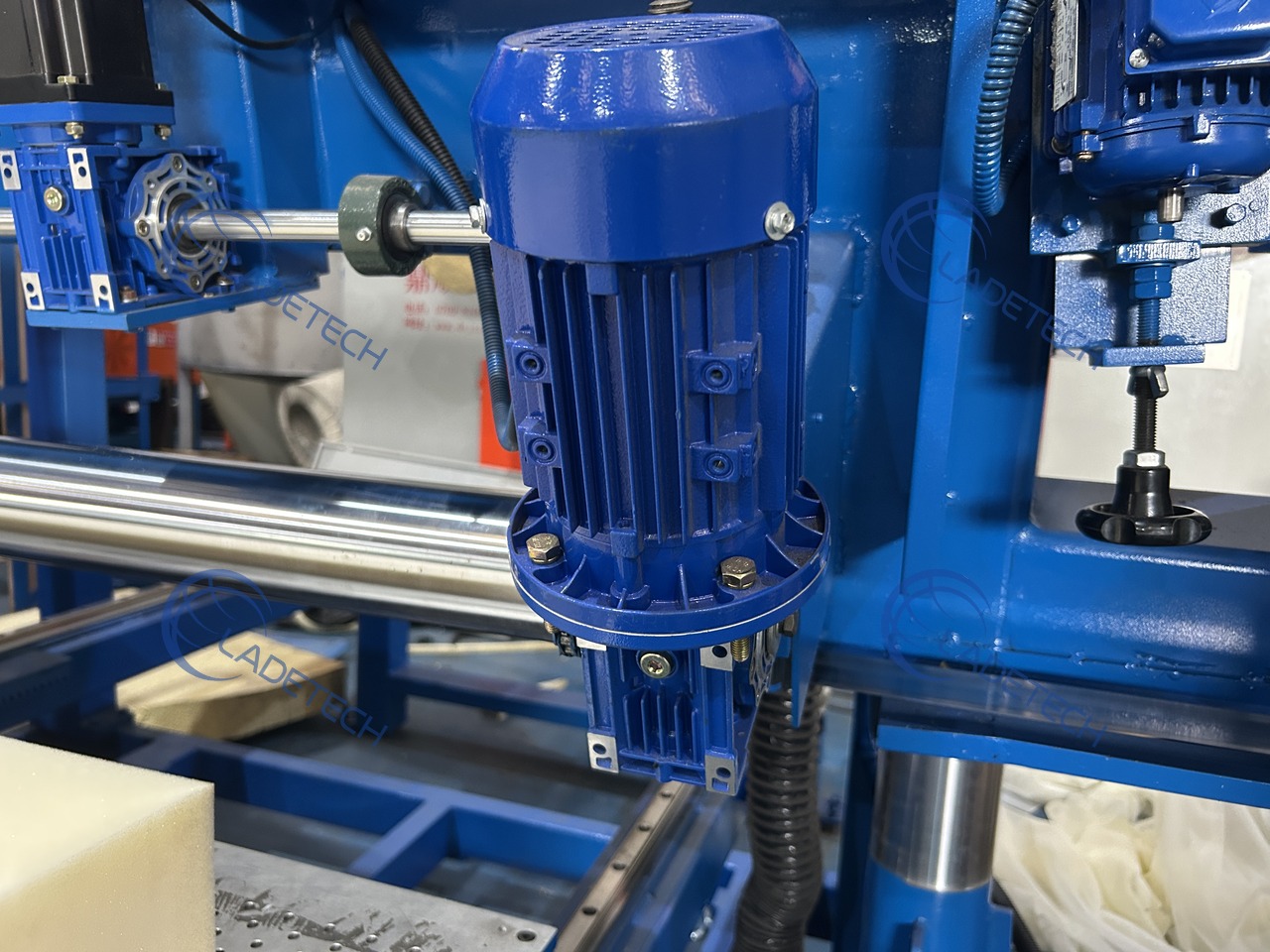

Blade Motor Power

2.2 kW

Platform Speed

0-10 m/min

Total Power

Approx. 10 kW

Machine Dimensions
(L x W x H)

5000 × 3800 × 2400 mm
Contact Us Send Inquiry

The LDT-GJD01 Horizontal High Precision Foam Cutting Machine is specially designed for accurately slicing polyurethane foam blocks into sheets of various thicknesses. Equipped with a high-precision cutting system and advanced control technology, the machine delivers excellent cutting accuracy, smooth cutting surfaces, and consistent thickness throughout the entire foam block.

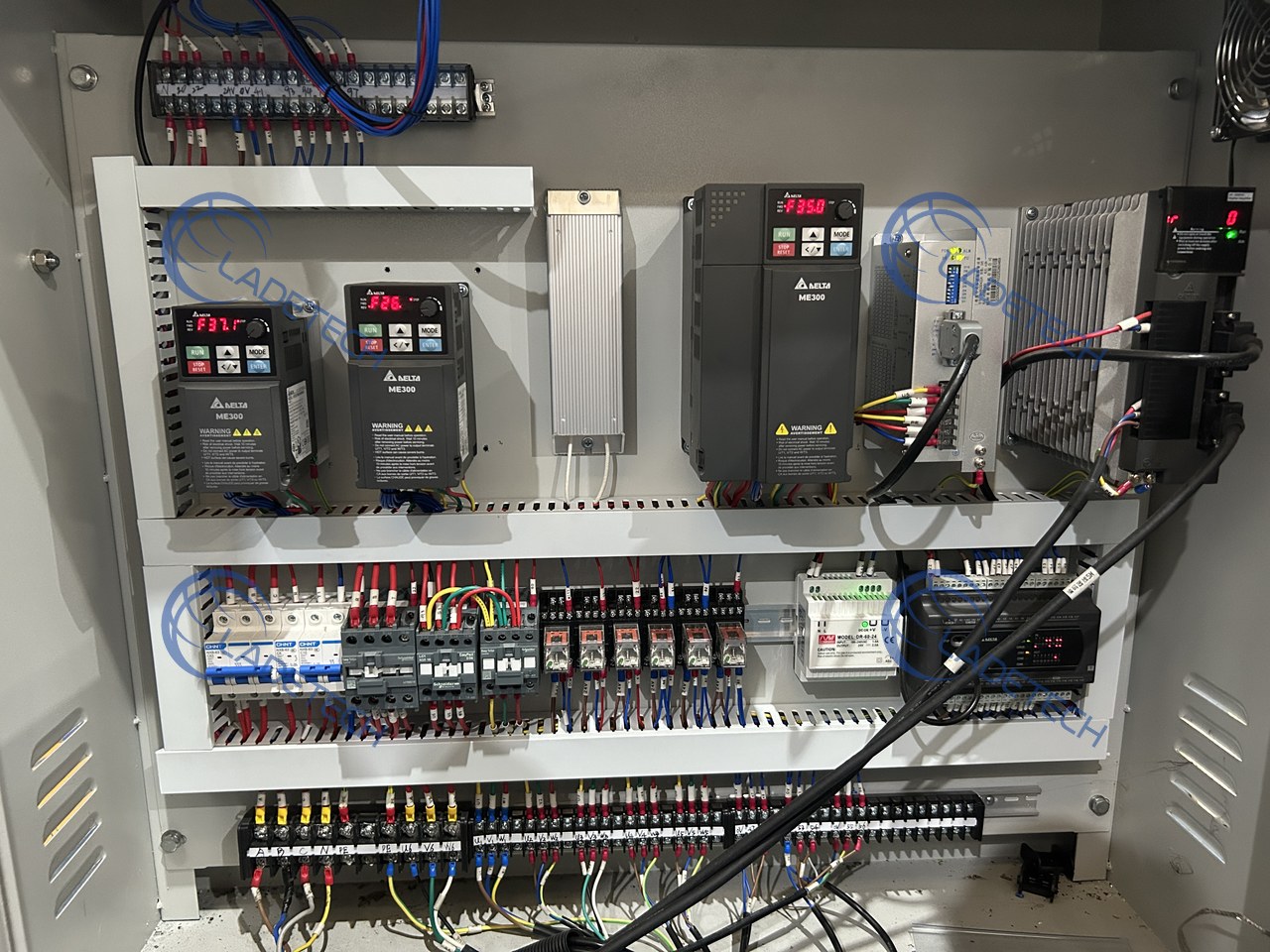

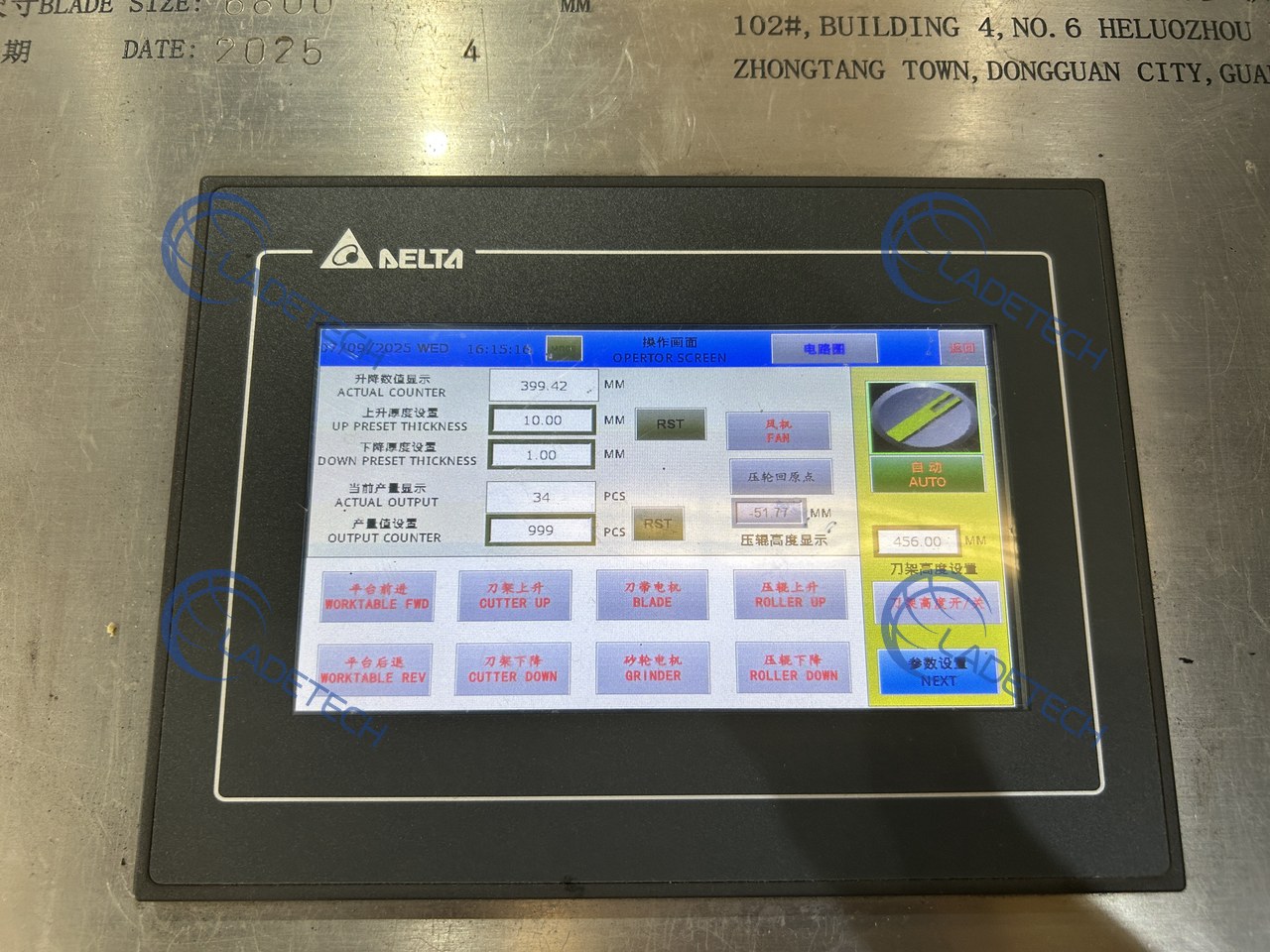

The machine features a stable working platform, precision guide rail system, and frequency-controlled cutting mechanism, ensuring reliable operation and high cutting efficiency. The user-friendly control system allows operators to easily adjust cutting parameters according to different production requirements.


Widely used in mattress manufacturing, upholstered furniture production, foam processing plants, and foam converting industries, the LDT-GJD01 is an ideal solution for producing high-quality foam sheets with superior dimensional accuracy and production consistency. Its robust construction, low maintenance requirements, and long service life make it a cost-effective choice for modern foam processing operations.

Technical Specification

Working Table Size (W x L)

1200 x 2400 mm

Cutting Height

300 mm

Blade Motor Power

2.2 kW

Platform Speed

0-10 m/min

Total Power

Approx. 10 kW

Machine Dimensions (L x W x H)

5000 × 3800 × 2400 mm
