LDT-FG09 Automatic Mattress Heavy Duty Flanging Machine
The LDT-FG09 is designed for flanging and overlock sewing of mattress panel edges. It combines a sewing head, conveyor work area, touchscreen and foot controls. The photos show the actual machine and stitched quilted-panel samples.
Key Features
Heavy-duty panel processing: Specified flanging thickness of 10-80 mm and width of 30 mm.
Controlled feeding: Touchscreen functions include conveyor forward/backward and sewing-head shift.
Stitch settings: Stitch length of 2-5 mm, with specified needle spacing of 2.0, 3.0 or 5.0 mm.
Operating speed: Maximum rotational speed of 3000 rpm.
Technical Specifications
| Model | LDT-FG09 |
| Stitch Length | 2–5 mm |
| Flanging Width | 30 mm |
| Maximum Rotational Speed | 3,000 rpm |
| Flanging Thickness | 10–80 mm |
| Needle Model | DP*5MR22-23# |
| Air Pressure | 0.6–0.8 MPa |
| Apparent Power | 3 kVA |
| Power Supply | Single-phase, 220 V, 50 Hz |
| Needle Spacing | 2.0 / 3.0 / 5.0 mm |
| Lubrication | SHELL C10 spindle oil |
| Dimensions | 2380 × 1830 × 1500 mm |
| Estimated Package Dimensions | 248 × 193 × 160 cm |
Rotational speed is not finished-panel output per hour. Material suitability and achievable output depend on panel construction, dimensions, stitch settings and operating conditions.
Product Pictures
1. Machine Overview

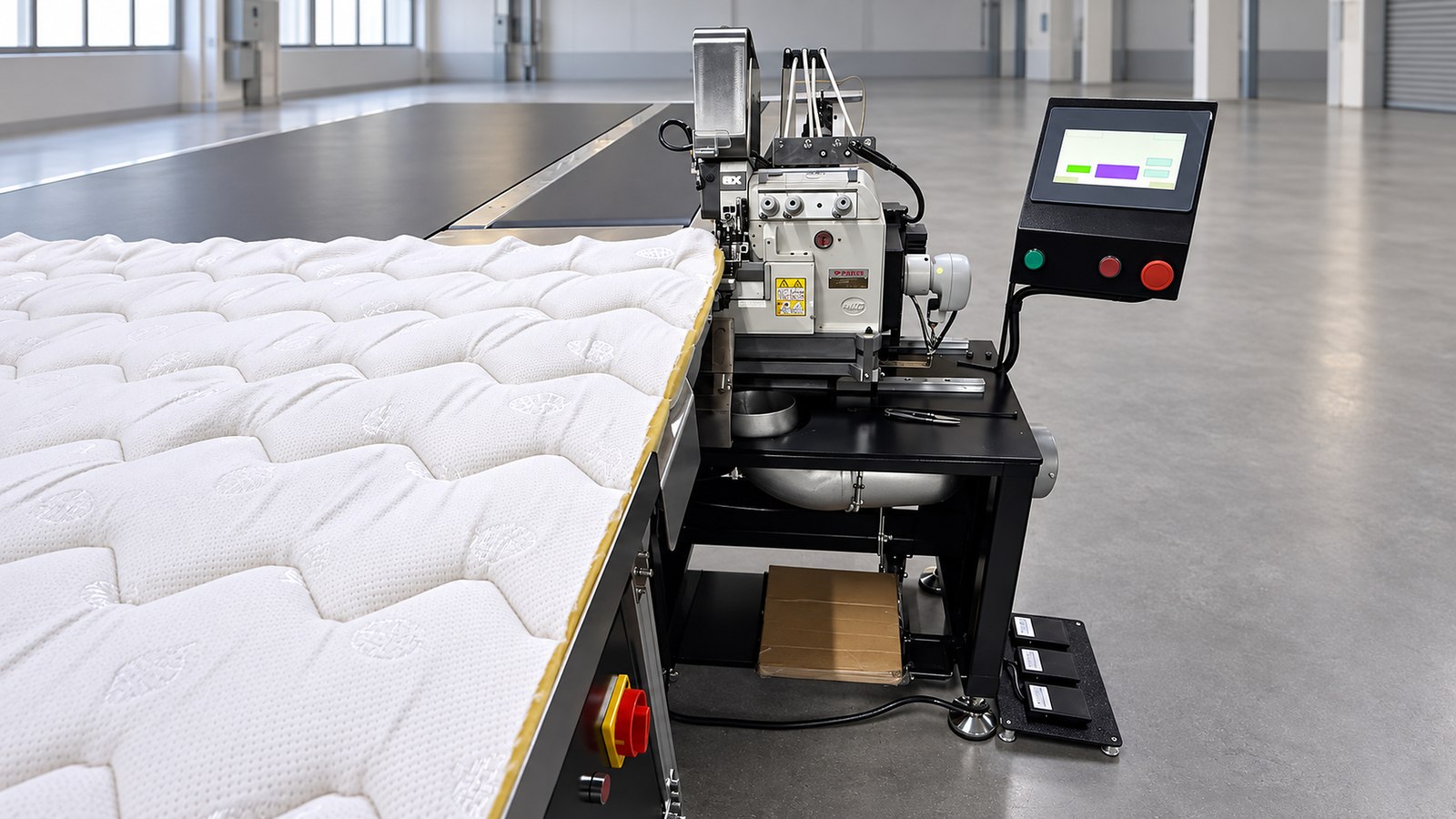

2. Working Area and Controls

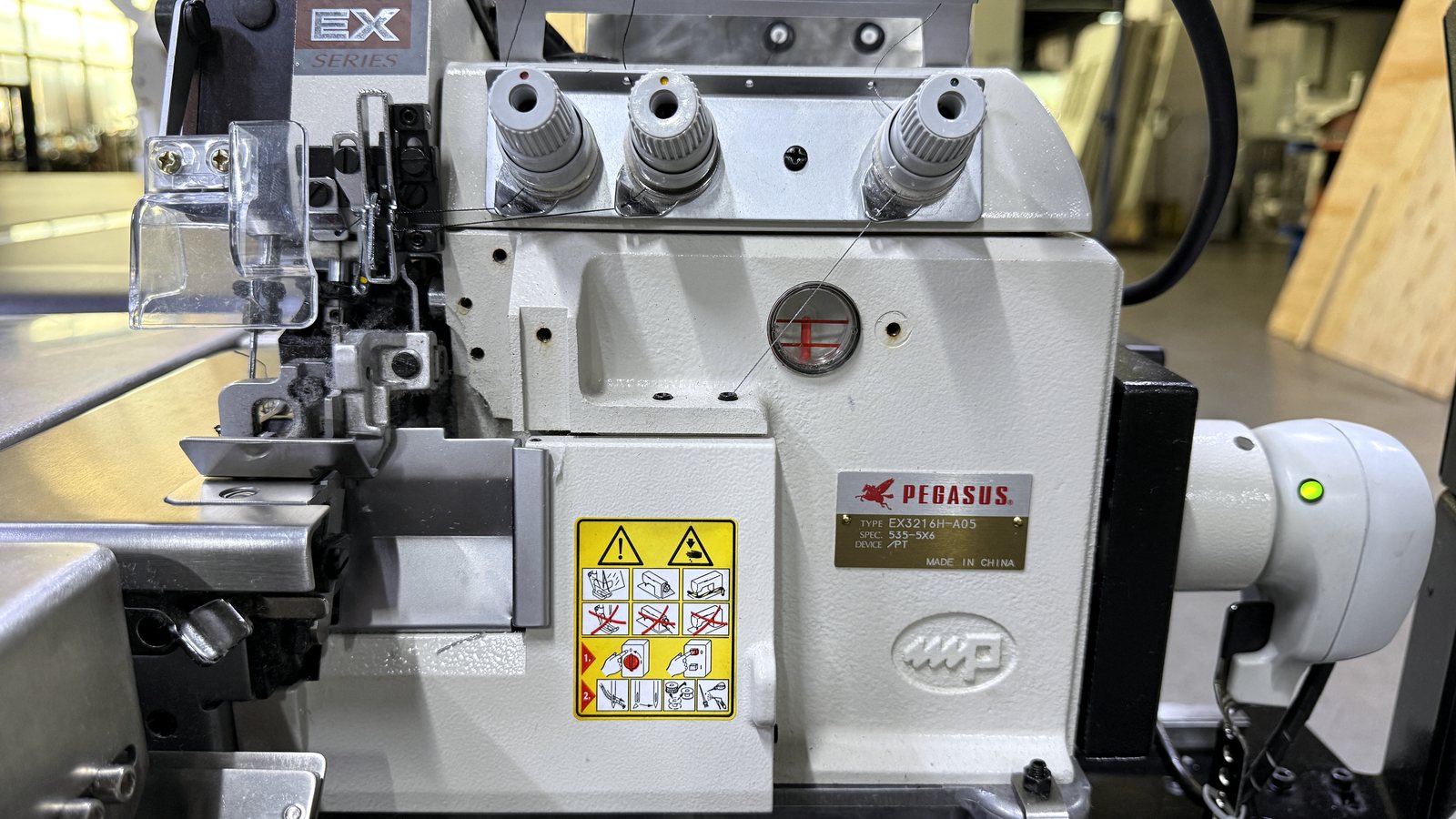

3. Sewing Head Detail

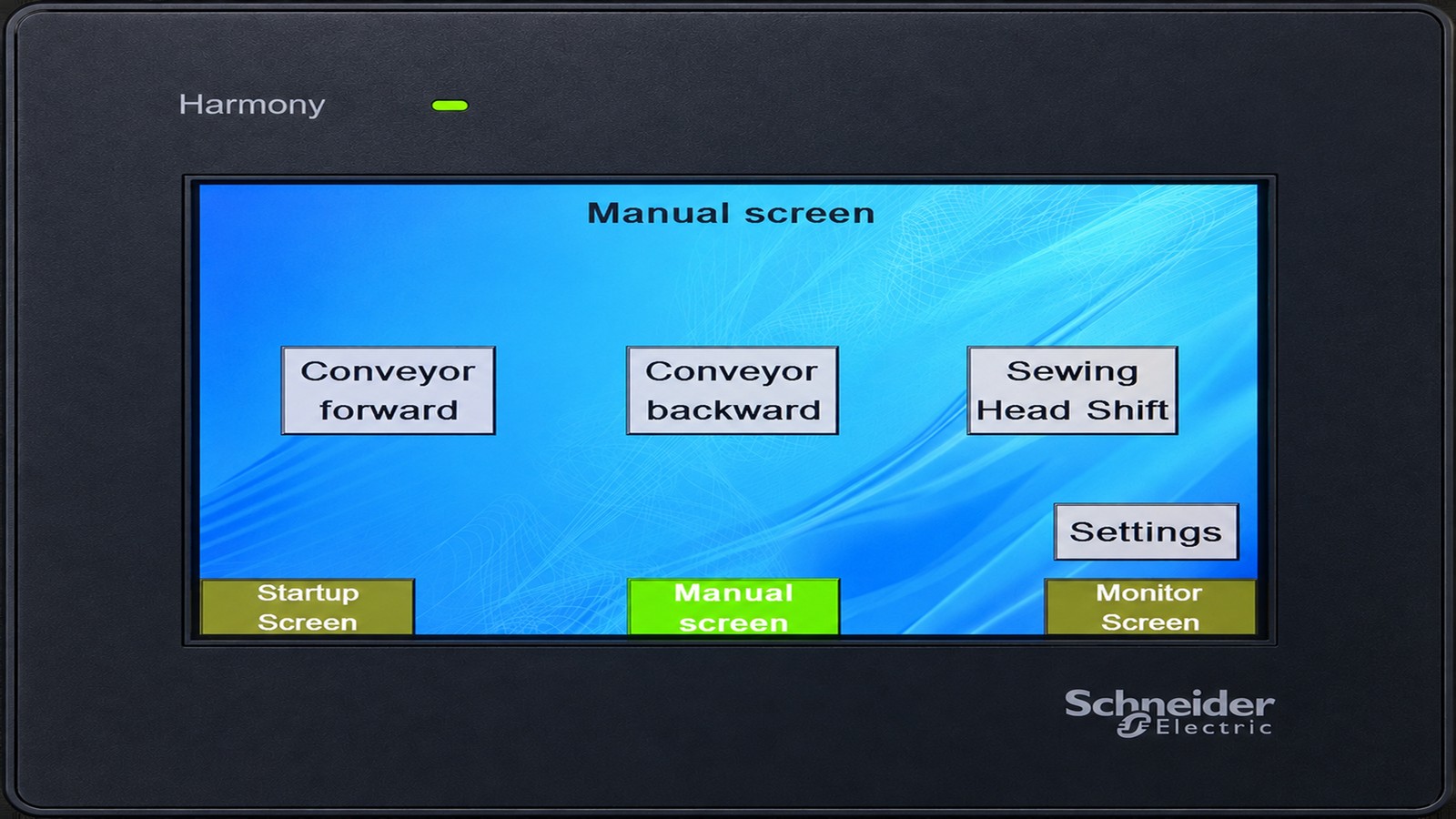

4. Touchscreen Control Panel

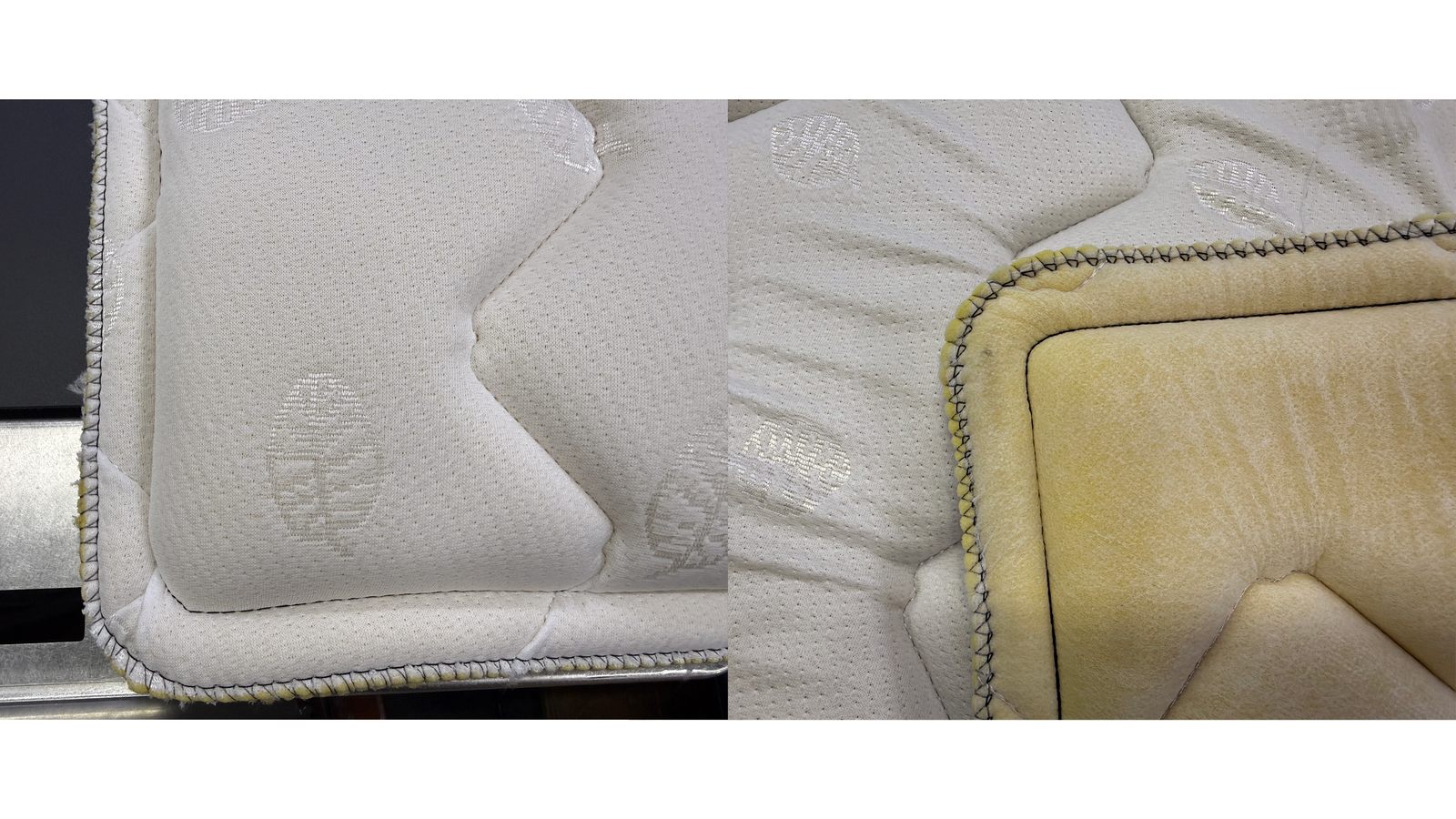

5. Finished Overlock Seam

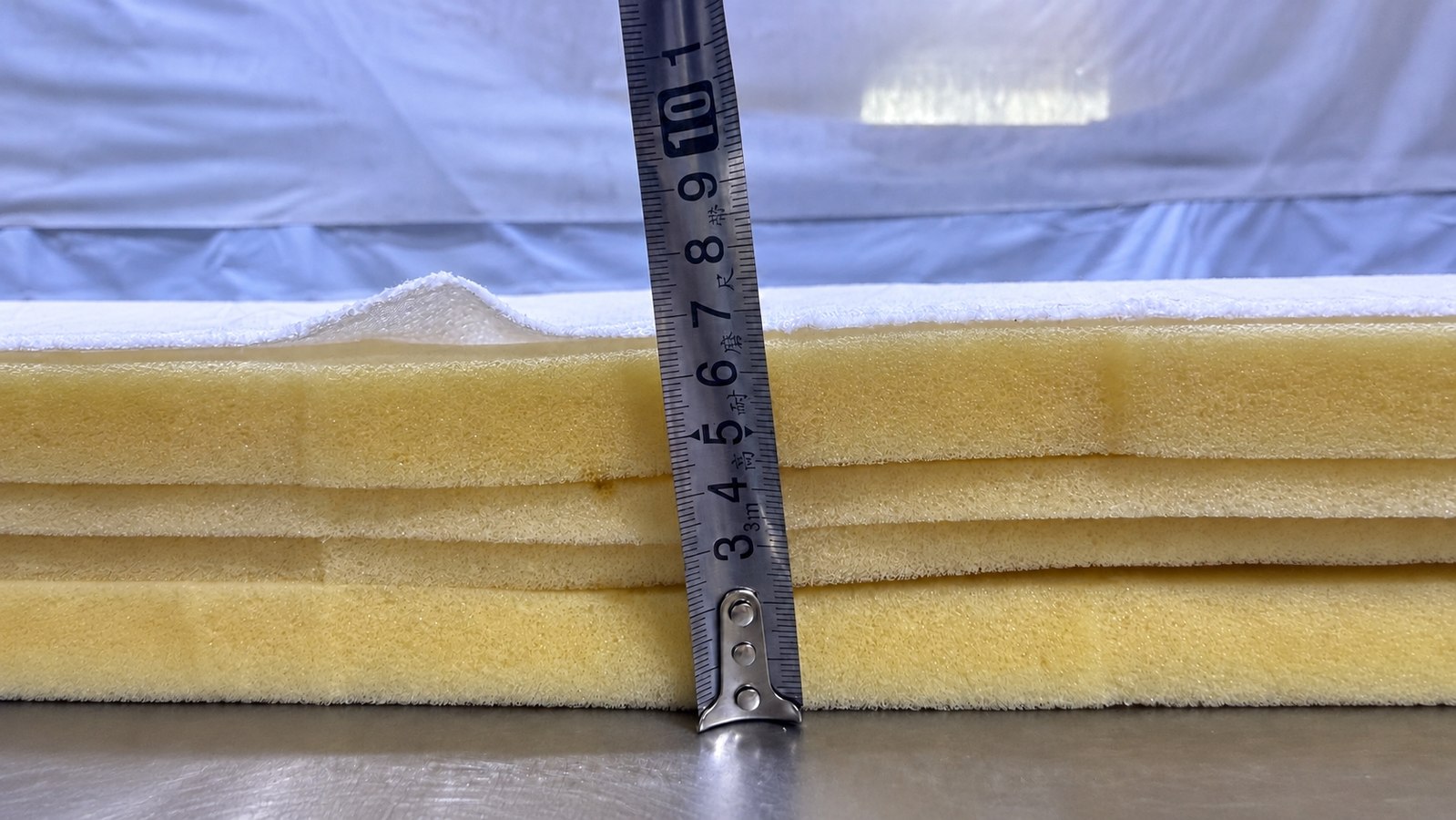

6. Layered Material Sample
Packing & Delivery
Contact us with your destination for packing, freight and delivery details. Final package dimensions and gross weight should be confirmed for the ordered configuration before shipment.
Before You Request a Quotation
Please provide panel length and width, material layers, thickness, required seam, local electrical supply and destination country. Photos or samples help us review the application and confirm the configuration and service scope.
